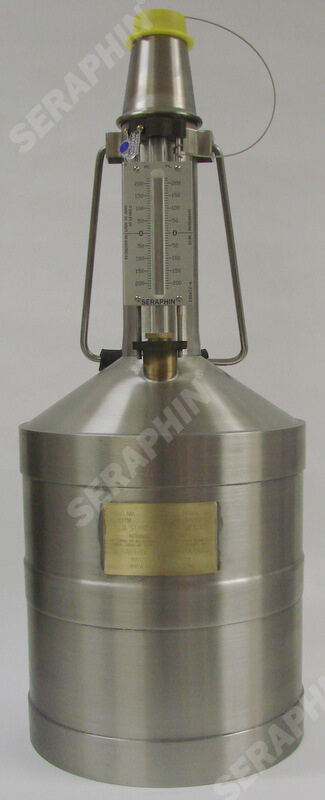

Item #EESS0020L-VRTM — Seraphin ® (Patent Pending) “VRTM ® System” 20L Test Measure
$1,166.00

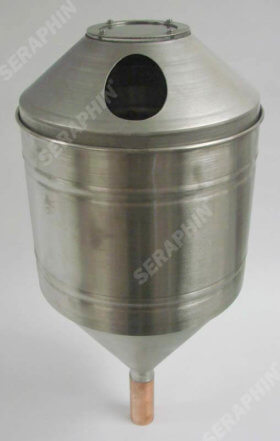

The test measure is equipped with a high resolution 3 in. neck with reducer and is used with a mating vapor retention funnel. This equipment, when used together, is designed to minimize vapor loss dur- ing inspection by maintaining a saturated vapor space in the test measure.
18 in stock (can be backordered)
Product Specifications
| CONSTRUCTION | Built to Measurement Canada Standards |
|---|---|
| CALIBRATION | Factory Calibration by standards traceable to National Institute of Standards and Technology |
| NOMINAL CAPACITY | 20 LITER - Calibrated "to deliver" at 15 Deg C |
| NOMINAL HEIGHT | 28 INCHES |
| WEIGHT (DRY) | 18 LBS |
| APPROXIMATE SHIPPING | 14" W X 14" L X 33" H 20 LBS BOXED |
| MATERIAL | TYPE 304 STAINLESS STEEL |
| NECK EXTENSION | REDUCED THE NECK DIAMETER TO A 2 INCH DISPENSING SPOUT |
| DESIGN | REINFORCING BANDS TO PREVENT DISTORTION OF PROVER WHEN FULL WITH LIQUID AND WHEN BEING TRANSPORTED. |
| GAUGE ASSEMBLY | EQUIPPED WITH A (LIQUID -LEVEL) GAUGE TUBE MOUNTED ON THE SIDE OF THE NECK |
| VOLUME INDICATION | ALUMINUM GRADUATED SCALE |
| SCALE RESOLUTION | 10ML INCREMENTS |
| REQUIRED SCALE RANGE | ± 200 ML. THE GAUGE SCALE SHALL BE GRADUATED BOTH ABOVE AND BELOW THE NOMINAL CAPACITY GRADUATION BY AN AMOUNT NOT LESS THAN 1.5 % OF THE PROVER VOLUME |
| TOLERANCE | 0.02% SCALE ACCURACY |
| GAUGE GLASS FITTING | SILICON BRONZE |
| HANDLE | BAIL TYPE WHICH WILL HANG WITH ITS AXIS VERTICAL WHEN FILLED WITH LIQUID |
| GRIP | RUBBER GRIP ON TEST MEASURE HANDLE |
| BOTTOM | CONCAVE AND OF ADEQUATE THICKNESS TO PREVENT DISTORTION WHEN FILLED |
