Item #E300801-VEP — Portable Fuel Dispenser Calibration Carts

Overview
Specifications
Videos

$7,747.00

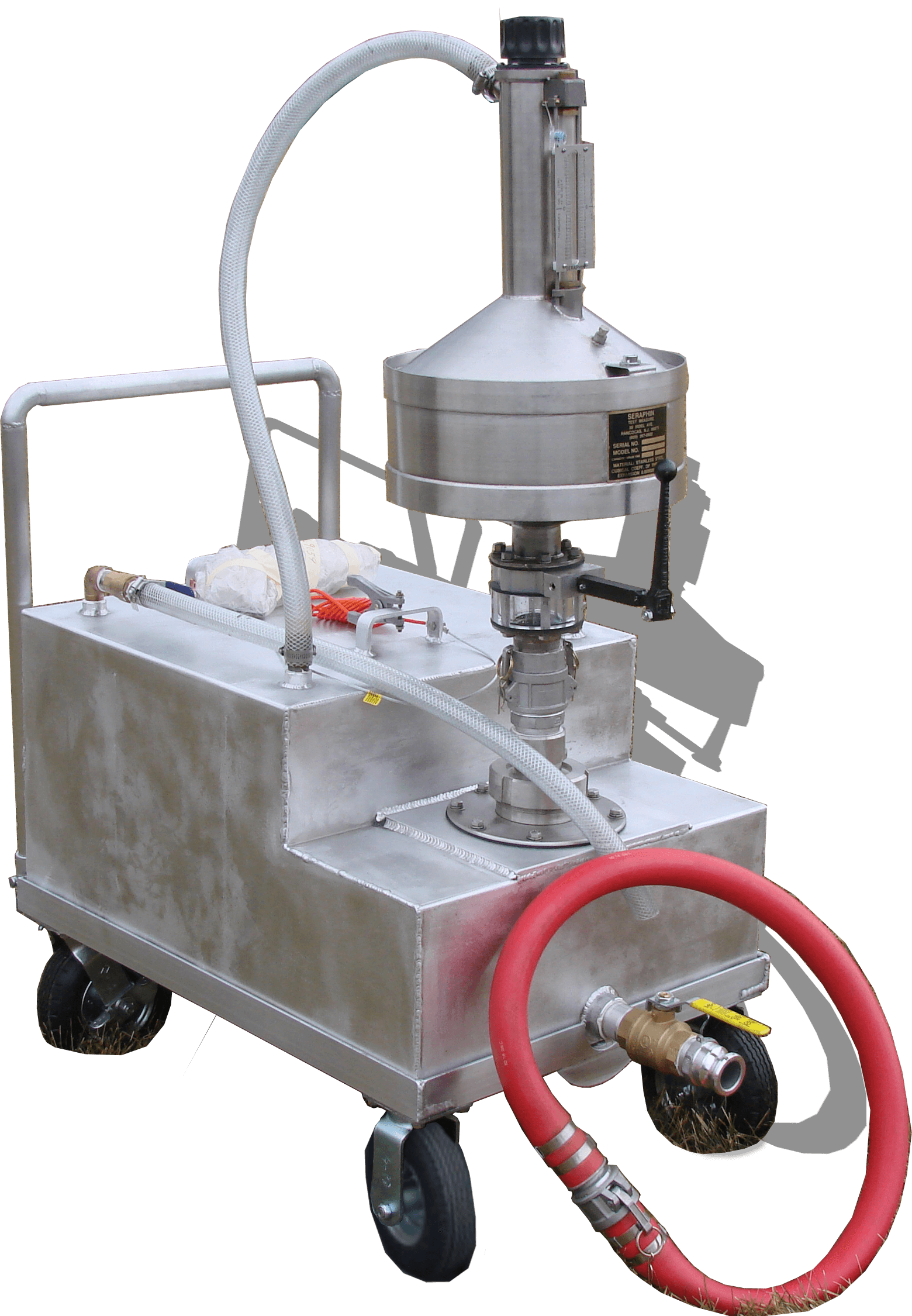

45 GALLON CART CALIBRATION UNIT, WITH ONE (1) SPECIAL J VRP/VEP® 5 GALLON STAINLESS
STEEL PROVER, AND ONE (1) 45 GALLON ALUMINUM HOLDING TANK

THE VRP/VEP® HAS A CAP MOUNTED ON ITS NECK THAT CREATES A
SEAL AROUND THE DISPENSER NOZZLE AS THE PROVER IS FILLED AND DRAINED
ALSO A VENT LINE IS FITTED FROM THE TOP OF THE PROVER TO THE PRODUCT
HOLDING TANK ON WHICH THE PROVER IS MOUNTED. THE NECK IS SEALED WITH
A FLAPPER AND BOOT TO PREVENT EVAPORATION AND RETAIN SATURATED AIR
DURING THE DRAIN-FILL CYCLE. THE VOLUME STANDARD, HOLDING TANK AND
VENT LINE CONFIGURATION IS SUCH THAT WHEN THE PROVER IS DRAINED, THE
AIR IN THE STORAGE TANK, WHICH IS SATURATED WITH GASOLINE VAPOR, IS
DRAWN THROUGH THE VENT LINE INTO THE PROVER, THEREBY MAINTAINING A
SATURATED ENVIRONMENT WITHIN THE PROVER.

Available on backorder

Product Specifications

5 GALLON PROVER SPECIFICATIONS
CONSTRUCTION Built to N.I.S.T. Handbook 105-3 Standards and API Manual of Petroleum Measurement Standards Chapter 4
CALIBRATION Factory CALIBRATED using standards Traceable to National Institute of Standards and Technology
NOMINAL CAPACITY 5 Gallon - Calibrated "to deliver" at 60 Deg F
NOMINAL DIAMETER 14 inches
NOMINAL HEIGHT 32 inches
MATERIAL TYPE 304 STAINLESS STEEL
DRAIN VALVE Center Drain, 2 inch butterfly valve
DESIGN Reinforcing bands to prevent distortion of prover when full with liquid and when being transported.
VENT 1 inch vent line (should be used with 1 inch vapor hose)
Evaporation Control Cap with chain on a sealed neck with flapper and boot to perevent evaporation and retain saturated air during the drain cycle
TEMPERATURE MEASUREMENT (1) Stainless Steel Thermometer well located so that the closed end is at the approximate center of the prover.
LEVEL T TYPE level--enables operator to ensure prover is level prior to testing.
SCALE RESOLUTION 0.5 CUBIC INCHES
DRAIN SIGHT GLASS Installed between prover drain valve and leveling ball joint to ensure drain time meets NIST (30 seconds after main flow cessation) drain requirements. Also used to check drain valve for leakage.
QUICK DISCONNECT The prover has a quick disconnect mates to complete stainless steel ball joint, which allows the prover easily stored.
LEVELING METHOD Complete Stainless Steel Leveling ball joint. Includes 10" Stainless Steel flange, ball joint, retaining nut and hardware with gasket--allows each prover to be easily leveled by swiveling on its ball joint and secured in place
CART SPECIFICATIONS
HOLDING TANK 45 gallon capacity.Vented. Overall dimensions: 34"L X 24" W X 16" H. (add 8" length to include drain ) with two handles on top to aid in the removal of the tank for transportation with fuel tank leveling gauge.
MATERIAL Sturdy but lightweight 1/8 inch Aluminum construction
WEIGHT Individual pieces weigh 47 lbs & 29 lbs , 79 lbs
GROUNDING Two grounding cables; one to connect to the prover, the other to connect to the fuel dispenser or fuel return apparatus.
CART Detachable push handle connects to cart with two quick release hitch pins., (4) 8 inch Pneumatic tires (2) standard wheels, and (2) swivel wheels with brakes.
DRAINING Special sloping and creasing in the bottom of the tank to ensure complete drainage.
DRAIN VALVE 1-1/2" Ball valve drain with 1-1/2" male quick disconnect fitting for fast and controlled product return
ACCESSORIES Stainless steel spanner wrench for tightening or loosening the ball joint.
